Topography Links and Using Tag by Category Makes Revit Angry

This one is subtle, like so many Reviteristics.

A team is testing the Revit to Civil 3D relationship via BIM 360 and Autodesk Desktop Connector. I don't think there are enough moving parts for this equation but I digress. A user reported that Tag by Category (TbC) causes Revit to crash.

We narrowed it down to linked Topography. If any exists then TbC gets dicey. Here's what we know so far:

  • Topography link Not Loaded status > Topography category visible in active view > TbC crash
  • Topography link Loaded status > Topography category NOT visible in active view > TbC NO crash
  • Topography link Loaded status > Topography category visible in active view > TbC NO crash

The team's project has two different linked topography sources so there are two of them in the Manage Links dialog. I haven't tried with just one present yet.

I'd be curious to see if anyone else can corroborate our situation. I've submitted crash reports (several/many) as I worked on this so perhaps Autodesk will find some lurking evil to contend with in the meantime.

Happy troubleshooting...


Friday, June 10, 2016

Revit Safe Mode - Wish Fulfilled

The other day I wrote about David's idea for a Revit Safe mode and Robert Manna responded in a serious way. He and the gang at Stantec created and have just shared an application to do just what we were suggesting. This is a screen shot of it running (from Robert's post).


It runs outside of Revit, prepares for opening Revit without the add-ins you choose to disable. It allows us to be fairly surgical in our troubleshooting even if it's akin to exploratory surgery ... "Hmmm, maybe we need to remove the appendix? No, that wasn't it...maybe the spleen?"

If you're curious head over to Robert's post on their blog for more information and to download the application.

Saturday, April 09, 2016

Warning Messages and Profile Families

Profile families are loadable (component) families but they don't exist on their own in projects. They are either used to create solid and void forms in the family editor, in-place families in projects or applied to System Families in projects. For example, a Railing, Sweep, Reveal and Floor Slab Edge can all use a Profile family.
Occasionally I'll get a generic sort of warning regarding the system family I'm trying to make, telling me "Sorry Steve, I can't make this thing for you".

Quite often the reason Revit is complaining is because I was sloppy making the Profile family. You may recall I've written about good sketches and bad sketches in the past.
Regardless the error message could certainly be written better; to mention that such an error may be related to a profile that isn't created properly. At this time, the error trapping process may not be able to reach deeply enough into the sketch mode process, for example like we use to create a Floor Slab Edge. Regardless, there is no reason the error message couldn't mention a common culprit, something to prod us to look more deeply for.

Technically the error is in a component family and then evaluated as part of a system family that references it. In a sense it is too far removed from the active operation for Revit to properly recognize what's wrong precisely. Therefore I think it would help if, while saving a profile family type, Revit tested it for proper closed boundaries to help us catch errors while editing the family. Revit does this when we attempt to finish a sketch for a solid or void form. Perhaps it could be a button on the ribbon? Something like Test Profile.

Help us help you Revit!

Friday, August 09, 2013

Naming a Reference Plane

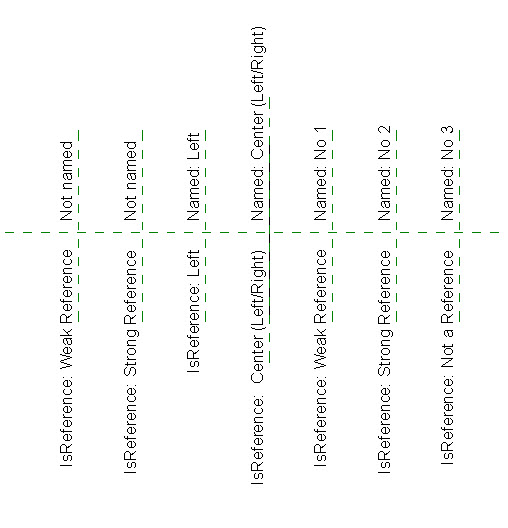

I read recently that just adding a name to a reference plane would cause it to be "strong". The notion of Strong, Weak and Not a Reference are related to the IsReference parameter, which I've written about before. It's my observation that adding a name to a reference plane has no impact on it's behavior in a project. To test my belief I created a small family with a collection of reference planes with various combinations of Name and IsReference parameter values.

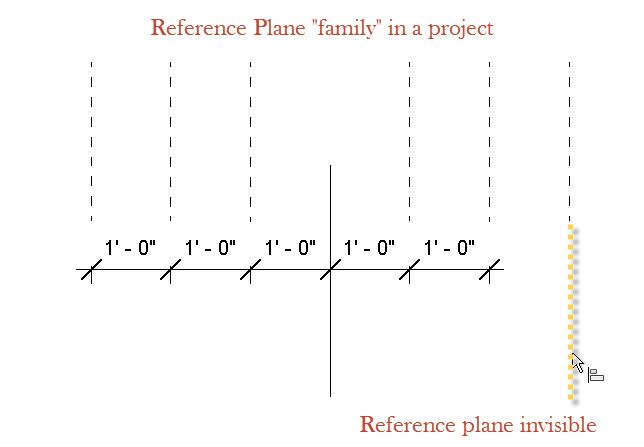

The reference plane on the far right is set to Not a Reference and has the Name No 3. Its the only one that is invisible in the project environment. The two on the far left have IsReference values (Weak and Strong) but have no Name either, they still are detectable in the project. I sketched dashed lines from the detectable ends of the reference planes. The dashed line on the far right is sketched where the reference plane should be but I couldn't snap to the end because it isn't detectable there. I also added a dimension string across each detectable reference plane.
