Topography Links and Using Tag by Category Makes Revit Angry

This one is subtle, like so many Reviteristics.

A team is testing the Revit to Civil 3D relationship via BIM 360 and Autodesk Desktop Connector. I don't think there are enough moving parts for this equation but I digress. A user reported that Tag by Category (TbC) causes Revit to crash.

We narrowed it down to linked Topography. If any exists then TbC gets dicey. Here's what we know so far:

• Topography link Not Loaded status > Topography category visible in active view > TbC crash
• Topography link Loaded status > Topography category NOT visible in active view > TbC NO crash
• Topography link Loaded status > Topography category visible in active view > TbC NO crash

The team's project has two different linked topography sources so there are two of them in the Manage Links dialog. I haven't tried with just one present yet.

I'd be curious to see if anyone else can corroborate our situation. I've submitted crash reports (several/many) as I worked on this so perhaps Autodesk will find some lurking evil to contend with in the meantime.

Happy troubleshooting...

Revit is Crashing

You're suffering with a file that is crashing on your computer. Have you attempted to work with/recover the file on a different computer? Doing so will help rule out the possibility that there is an issue with the PC you've been using.

Revit can be a grouchy bugger with too little RAM or an incompatible Video Card/driver. If you have very little RAM then it could be that Revit is running out of RAM before it can process the file properly during the save which can increase the RAM it requires to function. You can also try to disable the graphics options in the Options dialog > Graphics to see if that makes any difference.

I'd start by eliminating the PC itself, try to restore it using another. If that makes no difference then you need to consider the project file itself. Yet another thing to consider, linked files. You can move any linked files it is looking for to another folder temporarily so it can't find them to load them. If a link is really causing the problem then this file crashing is just a victim of a different problem. I've seen a link crashing the host several times in the past. It's a drag spending a lot of time trying to fix a file that didn't have a problem when a link really did.

In 2011 (my post about it) The Revit Clinic's Kathryn Langan wrote a post about a journal file parser she wrote.

Dept. of Echo - Four Causes for Revit 2012 Angst

From this morning's post at The Revit Clinic, worth a repost!!

1. WSCommCntr3.exe Process

For 2012 products, the Autodesk InfoCenter launches with Revit as a WSCommCntr3.exe process in the Windows Task Manager. The Revit.exe process could potentially wait on this WSCommCntr3.exe process. If you find Revit not getting past the splash screen, open the Windows Task Manager > Processes > WSCommCntr3.exe > End Process.

2. System Tray Applications

Verify if you have an application installed on the workstation, which allow the ability or attempt to minimize an application to the system tray. One example would be 4t Tray Minimizer. If present on the workstation I would test temporarily ending the application \ process to see if Revit 2012 launches as expected.

3. Corrupt WSCommCntrData.xml File

If the WSCommCntrData.xml file becomes corrupt, Revit may hang when attempting to read it at startup. First verify the file exists at the location below and if so move WSCommCntrData.xml when Revit is closed:

Windows Vista & Windows 7 ...\Users\%username%\AppData\Roaming\Autodesk\Revit\Autodesk Revit Architecture 2012\ENU\Components\WebServices\WSCommCntrData.xml

Windows XP ...\Documents and Settings\%username%\Application Data\Autodesk\Revit\Autodesk Revit Architecture 2012\ENU\Components\WebServices\WSCommCntrData.xml

4. Corrupt UIState.dat File

This could also be potentially related to a corrupt UIState.dat file. While Revit is closed, move or delete the UIState.dat file at the location below: Windows Vista & Windows 7

...\Users\%username%\AppData\Roaming\Autodesk\Revit\Autodesk Revit Architecture 2012\UIState.dat Windows XP ...\Documents and Settings\%username%\Application Data\Autodesk\Revit\Autodesk Revit Architecture 2012\UIState.dat

Dept. of Echo - Printing Problems with Revit 2012

Alan posted this tonight, "Printer and Plotter Bugs with Revit 2012". He's having issues with their KIP plotter and he reports that another London Revit User Group member is having trouble getting things out of their HP plotters.

Might have a quick read and weigh in if you can corroborate with your own issues. Serious enough that it might justify a early Web Update...if they can pin down the cause(s).

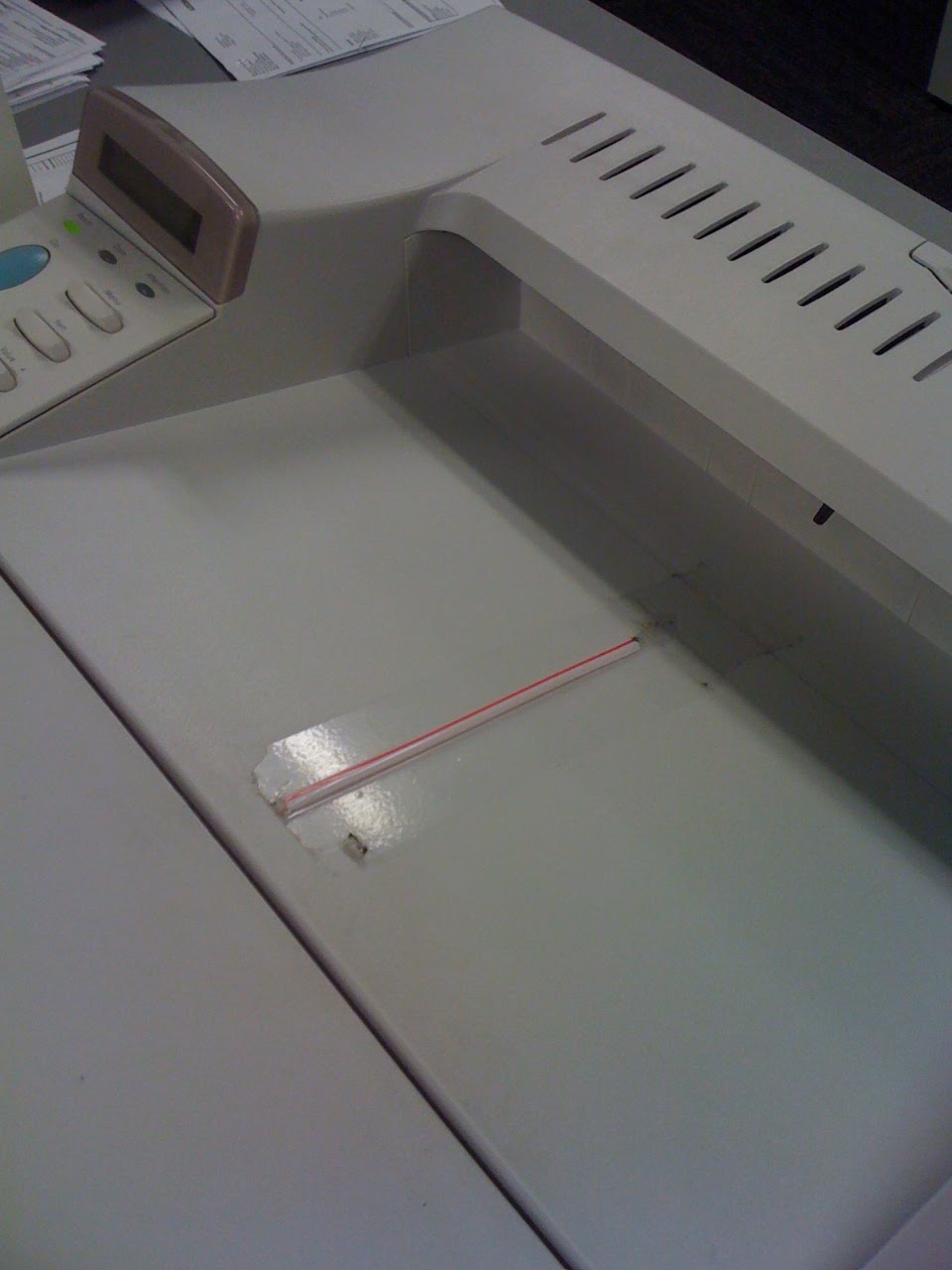

On another note (A flat), having trouble with your printer out-feed tray? Maybe this will help?

Saw it at a clients office recently, "Hmmm, finished stirring my coffee...I can recycle this!"
