Monday, December 30, 2019

UnHelpful Help Location URL

I read about quirky Reviteristic issue at RFO this afternoon. A weird graphics glitch occurs when we interact with the Help Icon families that use the URL parameter feature to reference an external document. This is an example of it in the sample architecture model that ships with Revit (rac_basic_sample_project.rvt - in imperial content).


When we select the icon and examine its properties we get this Learning Link parameter.


When we click in the field the small button appears with the ellipsis icon. Clicking on the that button will take us to the URL saved in family.


The trouble begins after we move our cursor away from the field and start to resume work. The URL is stuck on screen over another parameter like below, the Detail Number parameter for the view.

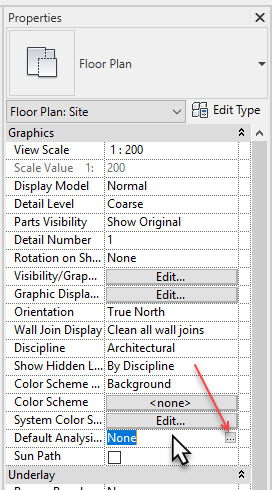

I noticed that I can work past the issue if I click in the Default Analysis Display Style field, which I presume works because it also has an navigation/ellipsis style button.


I also noticed that if I am careful to click on the field right above the Learning Link, called Location, before leaving the Properties Palette I can avoid the issue too.


The forum thread was talking about this in 2019 but these images are from 2020.2.

Monday, December 23, 2019

Revit 2020.2 Internal Origin Part Three

John Pierson and Parallax Team Apps recently shared a solution at the Autodesk App Store called Internal Origin Hide-ifier. I thought mine was cool but it doesn't install itself or come with a Doge.


It's only 1,000 bucks...nope its free!! Check it out.

Thursday, December 12, 2019

Rename View Click Twice - Wish I Could Turn That Off

Title says enough? I'm sick of getting to rename a view when I really mean to open it. I must be losing my double clicking mojo...

If possible add it to the existing Double Click behavior options? Pretty please?

That was quick!! My wish is already granted: See Michael's comment for the Revit.ini code that provides my wish. Thanks Michael!

Edit: I changed both ini files for Revit 2020.2 and it doesn't disable the renaming behavior...so wish not granted, unless I'm doing it wrong.

Friday, December 06, 2019

Internal Origin Follow Up

After I shared the earlier Dynamo graph I received an email from Aaron Rumple that did away with any package requirements. He wrote a python script and added it to my graph. It also eliminates the warning message that appears after running mine. The crux of that issue is the need to filter out view templates from the process because while view templates are applied to views under the hood they are also views...at least that's my layman's understanding.

Many thanks to Aaron, a real design software savant.

Download the new Dyn

As before, my graph allows you to include/exclude the internal origin, survey point and project base point. Just edit the settings of the Dyn before running it (see previous post).
