Unloading a Link Deletes Radial Dimensions

I read THIS post at RFO with interest naturally. The thread is about losing dimensions when linked files are updated. A subtle development in the thread is that radial dimension and linear dimensions are affected differently when a link is unloaded. Aaron Maller noticed that, mentioned it (in the thread) and asked someone at Autodesk about it. They looked into it and replied with:

Originally Posted by Autodesk Team

Here are the details. This is caused by the inconsistency between linear and radial dimension internal design.

For linear dimension, it handles “Unload a linked file" as a special case of dimension references not visible in the current view, while for radial dimension, it handles the unloading as invalid dimension reference, and thus it requires deletion of the radial dimension when unloading.

We will see how we might improve the radial dimension to follow a similar behavior pattern.

The emphasis was added by Aaron. Okay, good to know. For now, radial dimensions are at great peril if they are referencing a linked project. Best bet is to avoid dimensioning to linked elements anyway but especially so with radial dimensions.

Tags Dimensions and Linked Files

I've mentioned this subject in the past. I'm writing to bring it up again and to focus on how Revit deals with tags and dimensions differently when we apply them to elements that are in linked files.

First as a reminder, when a linked file changes and a user reloads that link in their Local File other users are not necessarily seeing the same version of the Linked File. That's because reloading a link is a local change, a personal action, that doesn't get passed along to the Central File when we use Synchronize with Central (SwC).

Let's imagine User A has reloaded a linked model and they've placed tags on doors and rooms that they observe are now present in the link. User A uses SwC to share this new tagging effort. Now User B, who already has a Local File open, decides to use Reload Latest or SwC to share something they've done or see what work other users have contributed.

It's important to note that User B did NOT use Reload in Manage Links or via right-click on the linked file in the Project Browser FIRST. As a result User B gets the warning in the next image. Don't be confused by the mention of Coordination Monitor which can be confusing. It can make us think we're dealing with something that has been involved with the Copy/Monitor tools.

The Tags are Orphaned, they've lost their relationship with the linked file's elements they are supposed to identify. You can see one tag is highlighted in orange in the image above. In the next image we can see what the floor plan really looks like in the linked file (and what User A sees). It's not quite the same as what User B thinks it looks like is it?

Let's now imagine that User A continues to work by adding the dimensions you see in the image above too. After they finish doing that they use SwC.

User B now decides to use SwC or Reload Latest, AGAIN without using Reload on the linked file. Their reward is a larger collection of warnings (see next image). The first three warnings are dedicated to the dimensions User A added to their Local File. There are no equivalent elements in the version of the linked file that User B sees so Revit's only recourse is to delete them ... or ... choose Cancel ... which is actually a better choice. If User B cancels and then Reloads the linked file first that will eliminate the warnings entirely.

The remaining warnings are focused on the newly orphaned door and room tags that can't find their parent elements. If we select one of the orphaned tags we can either use Pick New Host or Reconcile Hosting. The former will need us to pick a door to associate the tag with. The latter will open the Reconcile Hosting browser which shows us everything that has been orphaned so far. We can select individual items and right-click to use Pick Host or Delete the tag if that's a better choice.

Keep in mind, once this orphaned status occurs it sticks. Merely reloading a linked file afterward isn't going to fix it. We'll be forced to deal with Reconciling Hosting. In some situations it might be faster to delete the tags and use Tag All to place them all over again.

This might be an opportunity for an enterprising developer to write a routine that looks at orphaned families and picks the closest possible host? Better still...Autodesk?

My recommendation, if you MUST use tags and dimensions on linked files?

Develop the habit of reloading the necessary linked files BEFORE using SwC or Reload Latest.

If you get the warning messages in the images above, use CANCEL. Make a note of the elements the warning(s) is(are) focused on. Most likely the warnings are being issued because you need to use Reload on the linked files first.

I'd also consider a moratorium on applying tags or dimensions to linked elements while the link is being changed aggressively. For example, if we know that the link is going to undergo some massive redesign we should just agree to stay away from tags and dimensions until it settles down again.

It's also a good idea to let other people know that you have changed an integral linked file so they can all use Reload (link) to catch up together.

Reload From with Images

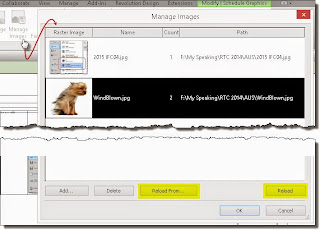

Luke mentioned the Reload From button in the Manage Images dialog in his post the other day.

While preparing for my What's New in Revit 2015 session at the Revit Technology Conference in Melbourne last year (image above is from the session's handout) I found that it didn't work well. The Reload From button didn't replace the image when it is referenced in system and component families. It only seemed to affect images placed on their own within the project. It only seemed reliable when I used the browse button for the image through the image parameters in the properties palette (or schedule).

After reading Luke's post I went back to test it again, since we've had six web updates since then, and I was pleased to find that Reload From and Reload worked as I'd expect it to!

I then thought it odd that there is no way to just Place an Image, to place another copy of an image somewhere else in the project. By that I mean, the Manage Images dialog offers an Add button to load an image. If we've just or already loaded an image, the Manage Images dialog also indicates when there is more than one instance of an image in use. It would seem useful, to me at least, to have a Place Image button.

We do have Decals but they are really intended for a different purpose. We also manage the related images for them separately from the Manage Images dialog. I suppose it is easy enough to select an existing image and paste another copy elsewhere. If I'm not sure where to find it (which means I may not realize there is one) a Place Image button would be handy though. The available images ought to show up in the Type Selector?

Regardless the Reload and Reload From buttons in the Manage Images dialog makes it easier to revise an image and then show that revised version in our project. It's almost like an external reference. Almost, except for the automatic reloading when a project opens.
