Revit 2014 Sample File WikiHelp Links

After enduring the painful download, unpack and install process that literally took from Friday morning to Sunday night I got to run the shipping version of Revit 2014. It took over 30 minutes to open the first time, but AutoCAD took over an hour. I think there is something seriously wrong with my computer but all the usual things check out fine. I digress...

[Edit: I apologize if you read this before. I had View References on the mind, but these are just Generic Annotations. Thanks to Jeff Hanson for the reminder.]

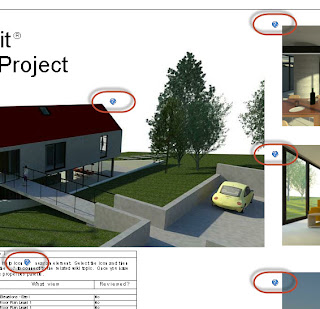

The new sample file includes new help references.



These are Generic Annotation families that take advantage of the URL parameter to let you navigate to the WikiHelp page related to the features or elements that the documentation team placed a reference next to. Wherever you see a help "?" select one and then in the Properties Palette click on the sneaky "Browse" button (little button that appears with the ellipsis "..." at the right of the URL parameter field)



I wrote about using the view references before, to simulate a "next slide" arrow for presentations instead of using Power Point. View References do not have the URL parameter but Generic Annotation families do. Using the URL means we can do the same thing except browse to specific items on our network or elsewhere via the internet without storing the data inside the Revit model itself. These are not entirely new concepts since the URL parameter has been in Revit all along and View References are not new, but not very old...but it is a nice twist on how they are applied.

Imagine the office training project files pointing users to office standards or other code practices etc. Something to think about.
